BNDFB3T

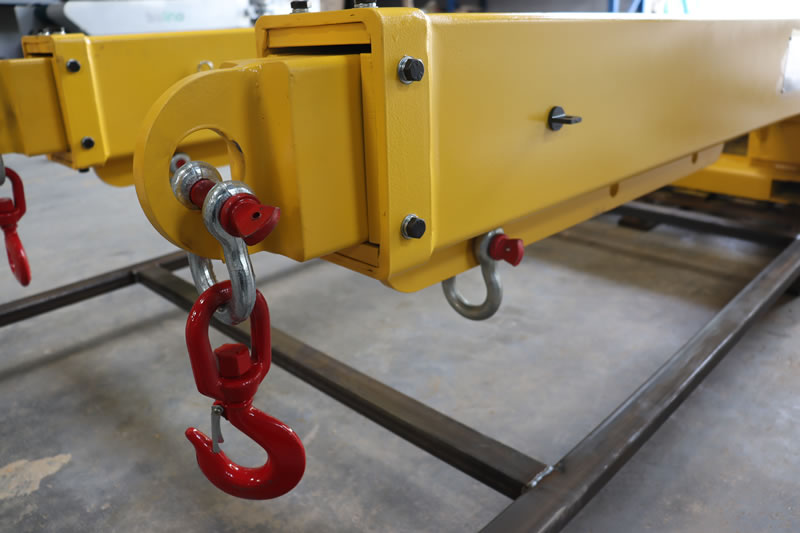

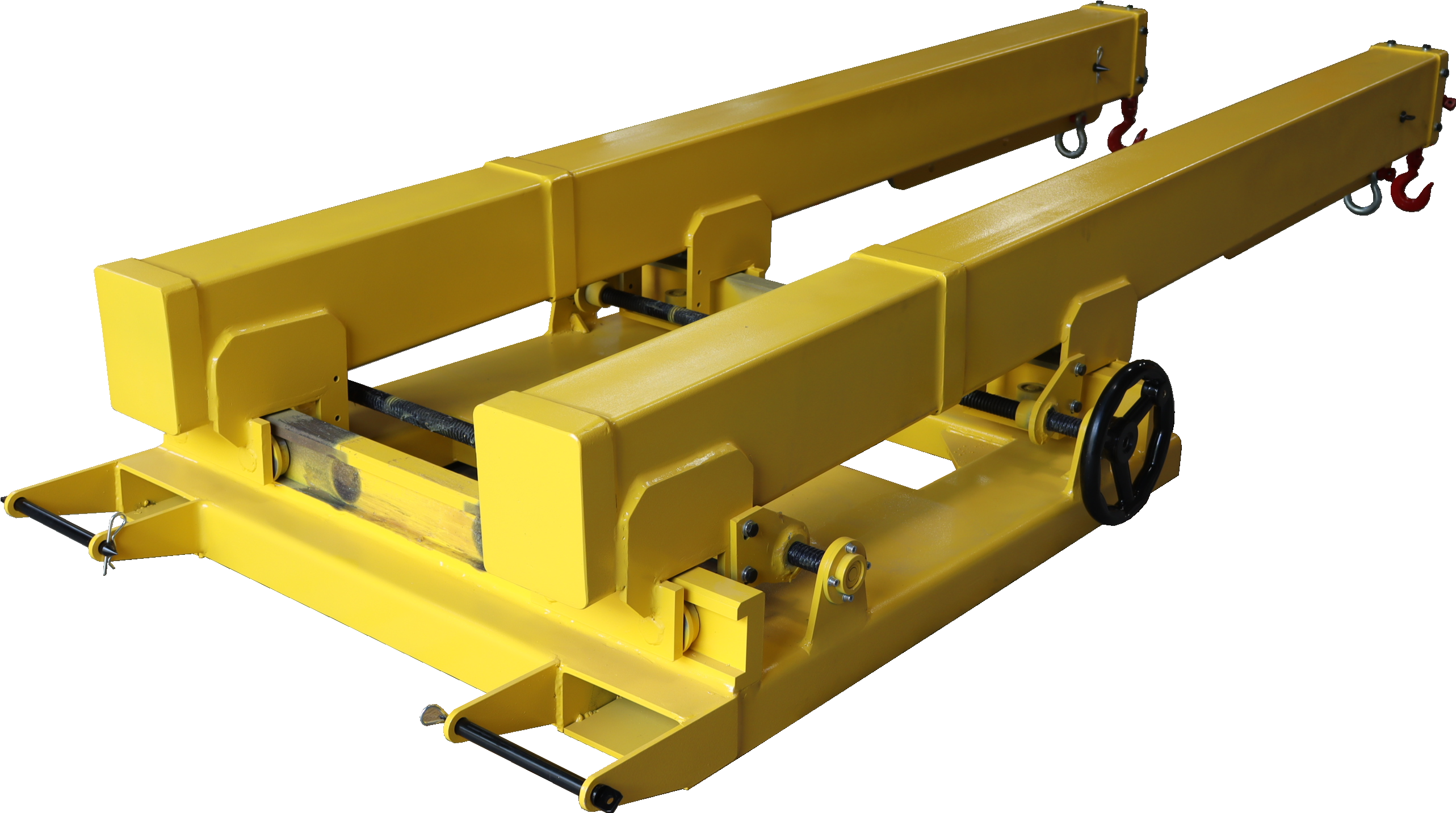

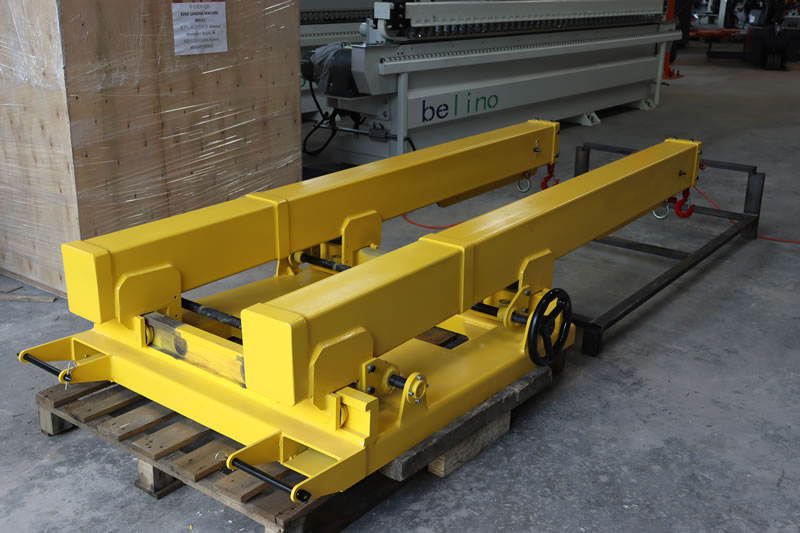

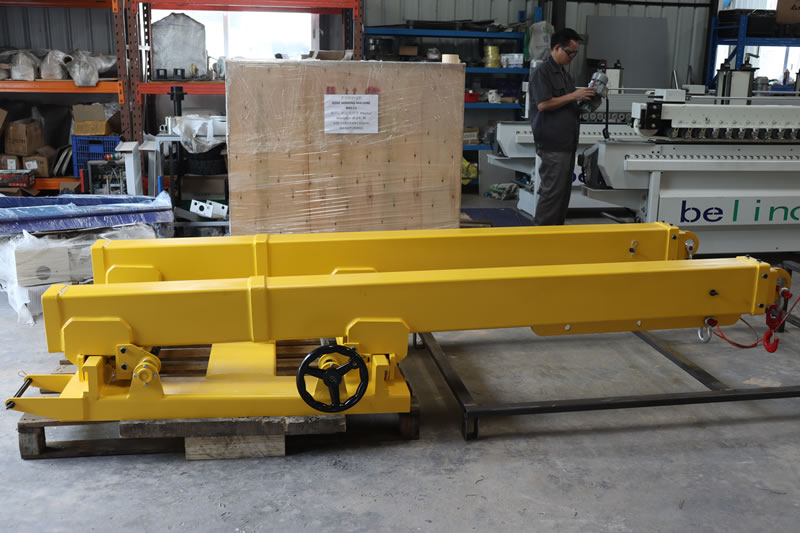

The Double Forklift Boom is a telescoping two section rectangular tube steel boom, designed for removing bundles of marble and granite slabs closed top containers.
Please call 86-0757-22818555 for information and order Consult
TECHNICAL PARAMETERS
| 型号 Model NO. | BNDF3T | BNDF5T |
| 完全缩回时的长度和承重力 Length & Capacity of Retracted | 2774mm /3000kgs | 2900mm /5000kgs |
| 完全伸展时的长度和承重力 Length & Capacity of Extended | 4722mm /1000kgs | 4697mm /3000kgs |
| 毛重 Gross Weight | 600kgs | 1163kgs |
| 包装尺寸 Package dimensions | L3010×W1170×H710mm | L3010×W1620×H760mm |
